High-Efficiency Collection Bags for Jet Mill and Micronizer Systems

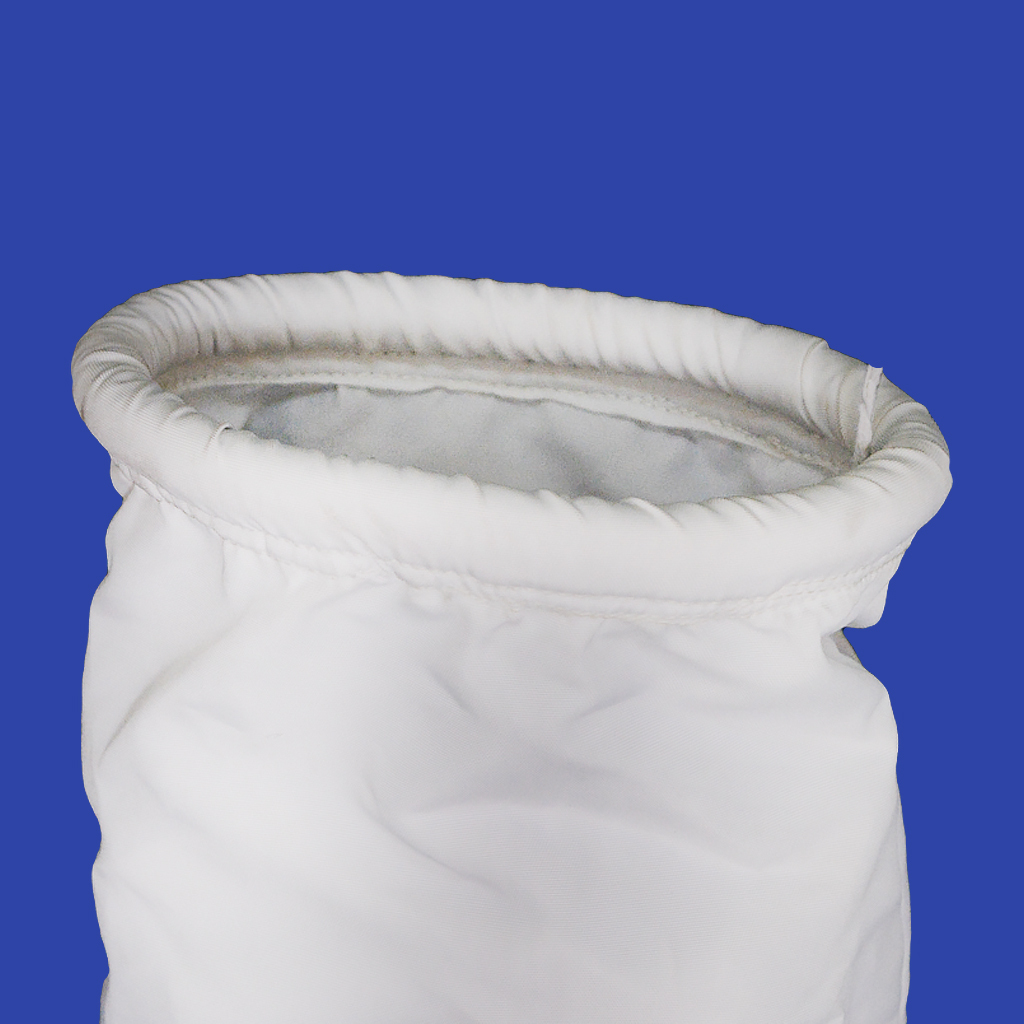

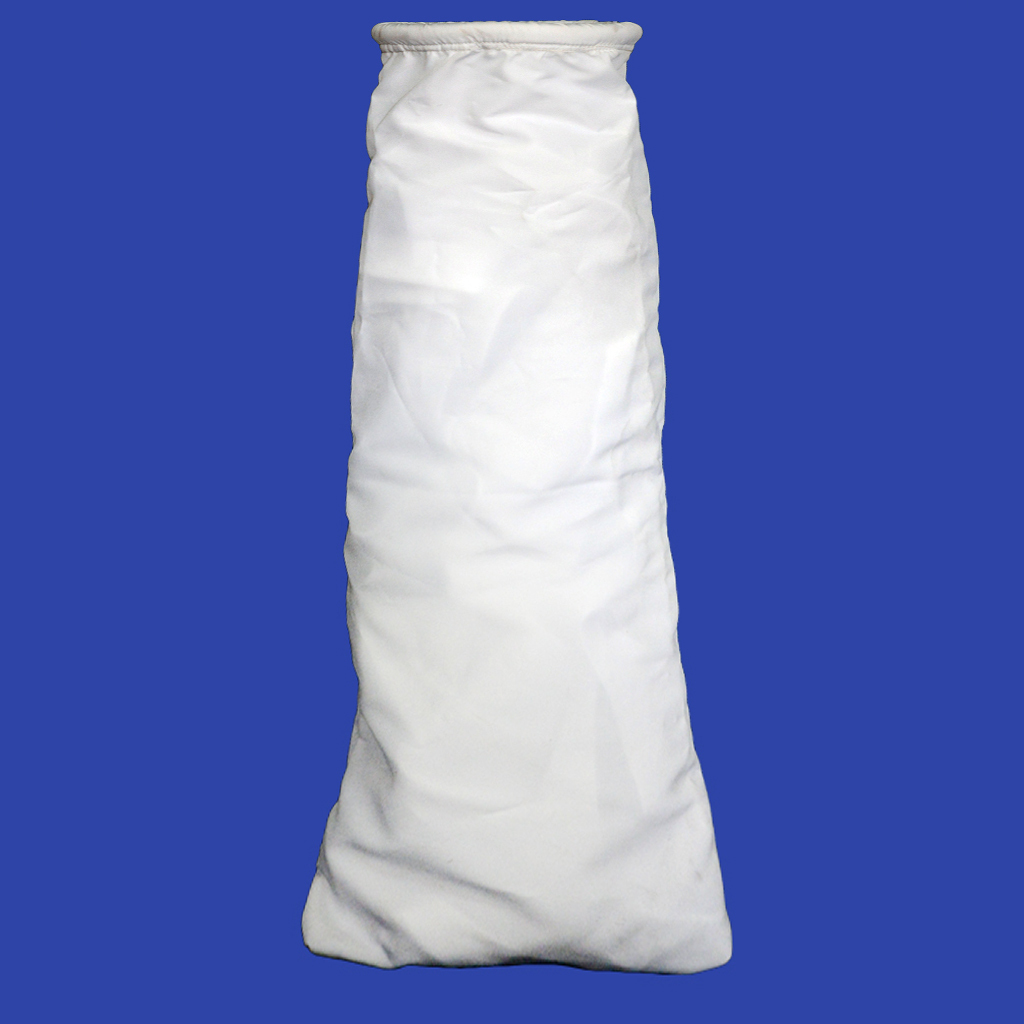

Skytech Ultrafab Micronizer Bags are purpose-engineered filter bags for product collection in jet mill (micronizer) systems used to produce ultra-fine pharmaceutical APIs, pigments, minerals, and specialty chemicals at D50 particle sizes below 10 µm. Fabricated from antistatic needle-punched polyester or nylon felt with surface treatment, they capture sub-micron particles at the jet mill outlet while maintaining the low pressure drop needed for efficient classifier operation.

What Is a Micronizer Bag?

A Micronizer Bag is the fabric filter element installed at the product outlet of a jet mill (spiral jet or pancake mill) to collect the ultra-fine ground product after classification. In a jet mill, compressed gas streams collide particles against each other at supersonic velocity, grinding them to sub-10 µm sizes. The classifier at the mill centre returns oversize particles for regrinding while fine product exits through the outlet — the micronizer bag captures this fine product without allowing it to escape to atmosphere or contaminate downstream equipment.

Features and Benefits

• Sub-Micron Particle Capture: Needle-punched felt structure with singed and calendered surface captures particles below 1 µm — essential for jet mill product recovery where particle sizes are far finer than most standard filter bags handle
• Antistatic Construction: Conductive fibre blended into the felt — surface resistivity below 10⁹ Ω — prevents static charge accumulation from the high-velocity powder stream that could cause ignition of flammable APIs
• Low Pressure Drop: Optimised felt weight and surface finish balance sub-micron retention with the low air resistance needed for efficient jet mill classifier performance and maximum product throughput
• Abrasion-Resistant Felt: Heavy-duty needle-punched construction resists abrasion from the high-velocity fine particle stream that would rapidly erode thinner media
• Custom Outlet Dimensions: Bag diameter and collar configuration fabricated to fit the specific jet mill model — all standard and non-standard outlet flange sizes accommodated
• FDA-Compliant Grades: Food-grade and pharmaceutical-grade felt available for pharmaceutical API, food ingredient, and nutraceutical jet milling applications

Technical Specifications

Applications

• Pharmaceutical API Micronisation: Collection of micronised active pharmaceutical ingredients (APIs) after spiral jet milling for inhalation drug products requiring D90 < 5 µm particle size specification
• Pigment and Dye Milling: Ultra-fine pigment and dye powder collection after jet milling for printing ink, cosmetic, and coating applications requiring sub-10 µm particle size
• Mineral Processing: Calcium carbonate, silica, talc, and mineral filler collection after jet milling for plastics, rubber, and paint filler applications
• Nutraceuticals: Micronisation and collection of nutraceutical active ingredients — curcumin, resveratrol, and botanical extracts — for enhanced bioavailability formulations
• Specialty Chemicals: Collection of catalyst powders, battery electrode materials, and specialty chemical ultra-fine products after jet mill particle size reduction

Why Choose Skytech Ultrafab for Micronizer Bags?

• Pharmaceutical Grade Antistatic: Conductive fibre felt available with FDA material certification — single product covering both antistatic safety requirement and GMP material compliance for pharmaceutical API milling
• Matched to Jet Mill Model: Bag geometry fabricated to the specific outlet of each jet mill brand — Hosokawa, Jet-O-Mizer, Sturtevant, Fluid Energy, and all Indian jet mill OEMs
• Low Pressure Drop Guarantee: Fabric weight and surface treatment selected for the specific product to maintain classifier efficiency — a wrong fabric choice can reduce jet mill throughput significantly
• Fast Replacement: Standard outlet sizes in 5–7 working days — micronizer bags are subject to rapid wear from abrasive fine particles and fast reorder is essential for continuous milling operations
• Sub-Micron Application Expertise: Skytech application engineers experienced in jet mill filtration — correct felt, weight, treatment, and antistatic grade selected for your specific product and safety classification
